PUG MACHINES

THE COMPACT MOTOR DRIVEN GAS CUTTING MACHINE

PORTACUT

The compact motor gas cutting machine for straight, curve, circle, bevel & multi-bevel flame cuts. The PORTACUT is the perfect oxyfuel flame cutting macine for a whole range of duties, idea for application which demand mameuverability and flexbility-in short, whatever a large machine is just too big for the job.

Function control by forward/off/reverse switch, clutch lever and speed adjustment knob

Power source: AC230V, 50 / 60Hz

Motor: Condenser induction, AC 230V, 10W

Cutting thickness: 3 - 300 mm

Cutting speed: 50 - 800 mm/min

Strip cutting: 80 - 300mm

Weight: 9.5 Kg.

VCM 200

The versatile VCM 200 is a precision, tractor - type machine that can be used on its own track for straight line cutting and a variety of welding operations. Off track and with a radius rod assembly, the VCM 200 can be used for circle cutting.

Straight line / Circle

Length increments of 72" (182.9cm) (track length)

Circle diameter 4" (101.6mm) to 96" (243.8)

Speed Range

1 - 60" / minute (25.4mm - 152.4cm / minute)

Dimensions

Length - 14.25" (362.0mm)

Width - 11" (279.4mm) Machine only

28.5" (723.9mm) - machine & torch holder

Height - 11.5" (292.1mm) - top torch of holder

5.5" (139.7mm) - top of machine

Weight-Machine - 47 LB. (21KG)

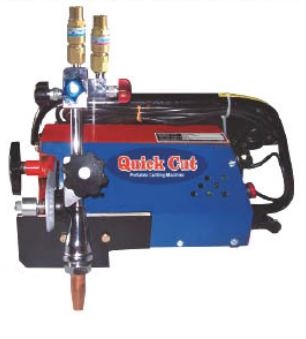

QUICKCUT

PORTABLE GAS CUTTING MACHINE
THE LOW-COST ALTERNATIVE FOR STRAIGHT AND BEVEL CUTS
The quickcut is one if the most used portable cutting machine in the world with a reputation for reliabilty and
quality second to none. Simple torch adjustment, both laterally and vertically and a wide range of options ensure felxible use for every application.

PIPE CUTTING MACHINE

PORTABLE PIPE CUTTING MACHINE

MANUAL PIPE CUTTING MACHINE TURBOCU

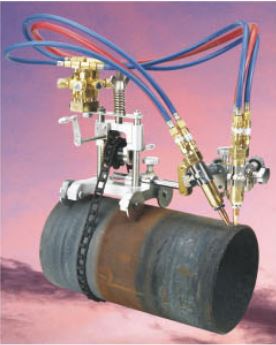

TURBOCUT

The heavy duty gas cutting machine for straight, bevel and multi-bevel flame cuts for various diameters pipes.
One/Two torch pipe cutting machine for straight and bevel cuts.

Pipe Diameter: Min. 100mm

Cutting Thickness: 6 - 100mm

Weight: 11.5Kg

Weldability PIPE CUTTING MACHINE

A manual and compact chain-driven pipe cutting machine that provides smooth, accurate cutting action by incorporating a
low gear ratio and worm wheel drive.
Cuts 5-50mm thick pipe with a minimum diameter of 100mm. Bevelling head angle can be set quickly and accurately by
scale on a rack and pinion.
This complete package is supplied together with a 2.4m length of guide chain and an ANM cutting nozzle.
Solidly constructed using brass, chromed and stainless steel parts.

Cutting Capacity : 114 - 600mm / 4 - 24inch

Thickness of Pipe to be cut : 50mm

Cutting Shape : L-Shape cutting and V-Bevel cutting (up to 45 degree)

Drive System : Manual

Range of Vertical Torch Movement : 50mm

Range of Lateral Torch Movement : 100mm
